实心锥形喷雾喷嘴

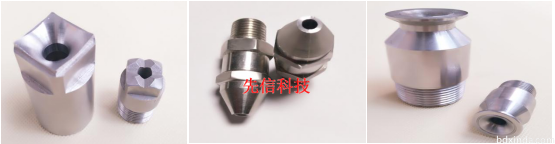

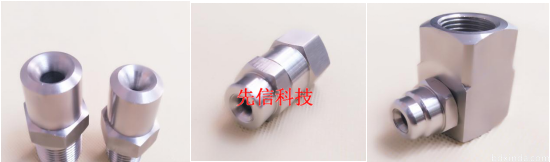

（HH型） （GG型） （GA转角型）
(WSQ方形） （窄角型） （MP型）

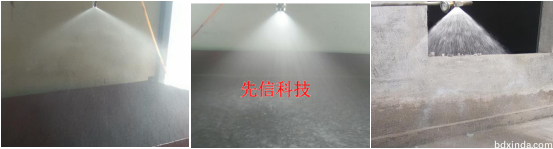

（120度雾化效果） （90度雾化效果） （转角型雾化效果）
一般应用： 主要材质： 链接方式:
1、冷却与淬火 1、不锈钢（各类材质） 1、NPT(内或外)
2、产品清洗 2、黄铜（各类材质） 2、BSPT（内或外）
3、灰尘控制 3、TEF
4、液体、气体洗涤 4、硬质合金
5、防火
6、擦洗器
性能参数：
| 链接尺寸 | 喷嘴型号 | 流量大小 | 喷孔孔径 | 畅通孔径 | 流量（升/分） |
| HH | GG | GA | 0.03Mpa | 0.05Mpa | 0.07Mpa | 0.1Mpa | 0.2Mpa | 0.3Mpa | 0.4Mpa | 0.5Mpa | 0.6Mpa | 0.7Mpa |
| 1/8 |
● |
● |
● | 2.8w | 1.6 | 1.0 |
|
| 1.1 | 1.2 | 1.7 | 2.0 | 2.3 | 2.5 | 2.7 | 2.9 |
|
● |
● |
● | 4.3w | 2.0 | 1.0 |
|
| 1.6 | 1.9 | 2.6 | 3.1 | 3.5 | 3.9 | 4.2 | 4.5 |
|
● |
● |
● | 5.6w | 2.4 | 1.0 |
| 1.8 | 2.1 | 2.5 | 3.4 | 4.0 | 4.6 | 5.1 | 5.5 | 5.9 |
|
● |
● |
● | 8W | 2.4 | 1.3 |
| 2.6 | 3.0 | 3.6 | 4.8 | 5.8 | 6.6 | 7.2 | 7.6 | 8.4 |
1/4 |
● |
● |
● | 10W | 2.8 | 1.3 | 2.6 | 3.3 | 3.8 | 4.5 | 6.0 | 7.2 | 8.2 | 9.1 | 9.8 | 10.8 |
|
● |
● |
● | 12W | 3.2 | 1.3 | 3.1 | 3.9 | 4.6 | 5.3 | 7.3 | 8.7 | 9.8 | 10.9 | 11.8 | 12.7 |
|
● |
● |
● | 14W | 3.6 | 1.6 | 3.7 | 4.6 | 5.3 | 6.2 | 8.5 | 10.1 | 11.5 | 12.7 | 13.7 | 14.8 |
|
● |
● |
● | 14WSQ | 3.6 | 1.6 | 3.7 | 4.6 | 5.3 | 6.2 | 8.5 | 10.1 | 11.5 | 12.7 | 13.7 | 14.8 |
3/8 |
● |
● |
● | 17W | 4.0 | 1.6 | 4.5 | 5.6 | 6.5 | 7.6 | 10.3 | 12.3 | 13.9 | 15.4 | 16.7 | 18.0 |
|
● |
● |
● | 17WSQ | 4.0 | 1.6 | 4.5 | 5.6 | 6.5 | 7.6 | 10.3 | 12.3 | 13.9 | 15.4 | 16.7 | 18.0 |
|
● |
● |
● | 20W | 4.4 | 2.4 | 5.2 | 6.6 | 7.6 | 8.9 | 12.1 | 14.5 | 16.5 | 18.1 | 19.6 | 21.2 |
|
● |
● |
● | 20WSQ | 4.4 | 2.4 | 5.2 | 6.6 | 7.6 | 8.9 | 12.1 | 14.5 | 16.5 | 18.1 | 19.6 | 21.2 |
|
● |
● |
● | 24W | 4.8 | 2.4 | 6.3 | 7.9 | 9.1 | 10.7 | 14.5 | 17.3 | 19.7 | 22 | 24 | 25.9 |
|
● |
● |
● | 24WSQ | 4.8 | 2.4 | 6.3 | 7.9 | 9.1 | 10.7 | 14.5 | 17.3 | 19.7 | 22 | 24 | 25.9 |
|
● |
● |
● | 27W | 5.2 | 2.8 | 7.1 | 8.9 | 10.3 | 12.0 | 16.3 | 19.5 | 22 | 24 | 26 | 28.1 |
|
● |
● |
● | 27WSQ | 5.2 | 2.8 | 7.1 | 8.9 | 10.3 | 12.0 | 16.3 | 19.5 | 22 | 24 | 26 | 28.1 |
1/2 |
● |
● |
● | 30W | 5.6 | 2.8 | 7.9 | 9.9 | 11.4 | 13.4 | 18.1 | 22 | 25 | 27 | 29 | 31.3 |
|
● |
● |
● | 30WSQ | 5.6 | 2.8 | 7.9 | 9.9 | 11.4 | 13.4 | 18.1 | 22 | 25 | 27 | 29 | 31.3 |
|
● |
● |
● | 35W | 6.0 | 3.2 | 9.2 | 11.5 | 13.3 | 15.6 | 21 | 25 | 29 | 32 | 34 | 36.7 |
|
● |
● |
● | 35WSQ | 6.0 | 3.2 | 9.2 | 11.5 | 13.3 | 15.6 | 21 | 25 | 29 | 32 | 34 | 36.7 |
|
● |
● |
● | 40W | 6.4 | 3.2 | 10.5 | 13.1 | 15.2 | 17.8 | 24 | 29 | 33 | 36 | 39 | 42.1 |
|
● |
● |
● | 40WSQ | 6.4 | 3.2 | 10.5 | 13.1 | 15.2 | 17.8 | 24 | 29 | 33 | 36 | 39 | 42.1 |
|
● |
● |
● | 45W | 6.4 | 3.6 | 11.8 | 14.8 | 17.1 | 20 | 27 | 33 | 37 | 41 | 44 | 47.5 |
|
● |
● |
● | 45WSQ | 6.4 | 3.6 | 11.8 | 14.8 | 17.1 | 20 | 27 | 33 | 37 | 41 | 44 | 47.5 |
|
● |
● |
● | 50W | 6.7 | 4.0 | 13.1 | 16.4 | 19.1 | 22 | 30 | 36 | 41 | 45 | 49 | 52.9 |
|
● |
● |
● | 50WSQ | 6.7 | 4.0 | 13.1 | 16.4 | 19.1 | 22 | 30 | 36 | 41 | 45 | 49 | 52.9 |
| 3/4 |
● |
● |
● | 6W | 9.9 | 4.4 | 18.4 | 23 | 27 | 31 | 42 | 51 | 58 | 64 | 69 | 73.6 |
|
● |
● |
● | 71WSQ | 9.9 | 4.4 | 18.4 | 23 | 27 | 31 | 42 | 51 | 58 | 64 | 69 | 73.6 |
| 1寸 |
● |
● |
● | 11W | 13.1 | 5.6 | 34 | 42 | 49 | 57 | 78 | 93 | 106 | 116 | 126 | 135 |
|
● |
● |
● | 130WSQ | 13.1 | 5.6 | 34 | 42 | 49 | 57 | 78 | 93 | 106 | 116 | 126 | 135 |
| 1-1/4 |
● |
● |
● | 16W | 15.5 | 6.4 | 49 | 62 | 71 | 83 | 113 | 135 | 154 | 169 | 184 | 198 |
|
● |
● |
● | 190WSQ | 15.5 | 6.4 | 49 | 62 | 71 | 83 | 113 | 135 | 154 | 169 | 184 | 198 |
| 1-1/2 |
● |
● |
● | 24W | 18.3 | 10.3 | 74 | 92 | 107 | 125 | 170 | 205 | 230 | 255 | 275 | 292 |
|
● |
● |
● | 290WSQ | 18.3 | 10.3 | 74 | 92 | 107 | 125 | 170 | 205 | 230 | 255 | 275 | 292 |
| 2寸 |
● |
● |
● | 47W | 25.0 | 11.1 | 144 | 181 | 210 | 245 | 335 | 400 | 455 | 500 | 540 | 575 |
|
● |
● |
● | 560WSQ | 25.0 | 11.1 | 144 | 181 | 210 | 245 | 335 | 400 | 455 | 500 | 540 | 575 |
性能参数：窄角喷嘴 |
链接螺纹 |
喷嘴型号 |
喷雾角度 |
流量大小 |
喷孔孔径mm |
流量（升/分） |
|
XG |
XH |
15度 |
30度 |
0.1Mpa |
0.2Mpa |
0.3Mpa |
0.4Mpa |
0.5Mpa |
0.6Mpa |
0.7Mpa |
1.0Mpa |
1.5Mpa |
2.0Mpa |
1/8 |
● |
|
◆ |
◆ | 1 | 0.79 | 0.32 | 0.45 | 0.55 | 0.64 | 0.71 | 0.78 | 0.84 | 1.0 | 1.2 | 1.4 |
|
● |
|
◆ |
◆ | 2 | 1.0 | 0.57 | 0.81 | 0.99 | 1.1 | 1.3 | 1.4 | 1.55 | 1.8 | 2.2 | 2.5 |
|
● |
|
◆ |
◆ | 3 | 1.2 | 0.91 | 1.3 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 | 3.5 | 4.1 |
|
● |
|
◆ |
◆ | 4 | 1.6 | 1.6 | 2.3 | 2.8 | 3.2 | 3.6 | 3.9 | 4.2 | 5.0 | 6.2 | 7.1 |
| 1/4 |
● |
|
◆ |
◆ | 5 | 2.0 | 2.1 | 2.9 | 3.6 | 4.1 | 4.6 | 5.0 | 5.4 | 6.5 | 7.9 | 9.2 |
| 3/8 |
● |
|
◆ |
◆ | 6 | 2.4 | 3.2 | 4.5 | 5.5 | 6.4 | 7.1 | 7.8 | 8.4 | 10.1 | 12.4 | 14.3 |
| 1/2 |
● |
|
◆ |
◆ | 7 | 3.2 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 6.7 | 18.1 | 22 | 26 | 31 |
| 3/4 |
● |
|
◆ |
◆ | 8 | 4.4 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 44 | 51 |
| 1寸 |
|
● |
◆ |
◆ | 9 | 5.2 | 16 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | 62 | 71 |
|
|
● |
◆ |
◆ | 10 | 6.4 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 88 | 102 |
| 1-1/4 |
|
● |
◆ |
◆ | 11 | 7.5 | 34 | 48 | 59 | 68 | 76 | 84 | 90 | 108 | 132 | 153 |
|
|
● |
◆ |
◆ | 12 | 8.7 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 177 | 205 |
| 1-1/2 |
|
● |
◆ |
◆ | 13 | 9.5 | 57 | 81 | 99 | 114 | 127 | 140 | 151 | 180 | 220 | 255 |
|
|
● |
◆ |
◆ | 14 | 10.3 | 68 | 97 | 118 | 137 | 153 | 167 | 181 | 220 | 265 | 305 |
2寸 |
|
● |
◆ |
◆ | 15 | 11.1 | 80 | 113 | 138 | 160 | 178 | 195 | 215 | 255 | 310 | 360 |
|
|
● |
◆ |
◆ | 16 | 11.9 | 91 | 129 | 158 | 182 | 205 | 225 | 245 | 290 | 355 | 410 |
|
|
● |
◆ |
◆ | 17 | 13.5 | 114 | 161 | 197 | 230 | 255 | 280 | 305 | 360 | 445 | 510 |
2-1/2 |
|
● |
◆ |
◆ | 18 | 14.7 | 137 | 193 | 235 | 275 | 305 | 335 | 365 | 435 | 530 | 620 |
|
|
● |
◆ |
◆ | 19 | 5.9 | 160 | 225 | 280 | 320 | 360 | 390 | 425 | 510 | 620 | 720 |
|
|
● |
◆ |
◆ | 20 | 19.1 | 230 | 325 | 395 | 455 | 510 | 560 | 610 | 750 | 860 | 1020 |
|
|
● |
◆ |
◆ | 21 | 19.8 | 250 | 355 | 435 | 510 | 560 | 620 | 670 | 800 | 970 | 1120 |
|
|
● |
◆ |
◆ | 22 | 20.6 | 275 | 390 | 475 | 550 | 620 | 670 | 730 | 870 | 1060 | 1230 |
一般应用：
1、对需要深度渗透或喷射产生湍流以确保透彻洗涤的产品进行清洗。
2、喷射管管的内侧对其进行冷却或清洗。
3、给过热蒸汽降温。
性能参数：SMP喷嘴。
|
螺纹或法兰尺寸 |
喷嘴编号 |
畅通直径mm |
流量（升/分）压力Mpa |
|
0.02Mpa |
0.03Mpa |
0.05Mpa |
0.07Mpa |
0.1 Mpa |
0.2 Mpa |
0.3Mpa |
0.5Mpa |
3/8 |
SMP125 |
3.18 |
2.60 |
3.14 |
3.99 |
4.68 |
5.53 |
7.66 |
9.27 |
11.8 |
|
SMP156 |
3.97 |
4.13 |
4.99 |
6.35 |
7.43 |
8.79 |
12.2 |
14.8 |
18.7 |
|
SMP187 |
4.76 |
5.96 |
7.21 |
9.17 |
10.7 |
12.7 |
17.6 |
21.3 |
27.1 |
| 1/2 |
SMP218 |
2.56 |
9.48 |
11.5 |
14.6 |
17.1 |
20.2 |
28.0 |
33.9 |
43.0 |
|
SMP250 |
6.35 |
10.7 |
12.9 |
16.4 |
19.2 |
22.7 |
31.4 |
38.0 |
48.4 |
| 3/4 |
SMP281 |
7.14 |
13.1 |
15.8 |
20.1 |
23.6 |
27.9 |
38.6 |
46.8 |
59.4 |
|
SMP312 |
7.94 |
15.9 |
19.2 |
24.4 |
28.6 |
33.8 |
46.8 |
56.6 |
72.0 |
|
SMP343 |
8.73 |
19.4 |
23.5 |
29.9 |
35.0 |
41.4 |
57.3 |
69.4 |
88.2 |
| 1寸 |
SMP375 |
9.53 |
22.9 |
27.7 |
35.2 |
41.3 |
48.8 |
67.6 |
81.8 |
104 |
|
SMP406 |
10.3 |
27.6 |
33.3 |
42.3 |
49.3 |
58.6 |
81.1 |
98.1 |
126 |
|
SMP437 |
11.1 |
34.0 |
40.6 |
50.9 |
59.0 |
69.0 |
93.6 |
112 |
140 |
1-1/4 |
SMP500 |
11.1 |
43.7 |
52.2 |
65.4 |
758 |
88.7 |
120 |
144 |
180 |
|
SMP531 |
12.7 |
48.5 |
58.0 |
72.7 |
84.2 |
98.6 |
134 |
160 |
200 |
|
SMP562 |
13.5 |
53.4 |
63.8 |
79.9 |
92.7 |
108 |
147 |
176 |
220 |
1-1/2 |
SMP593 |
15.1 |
60.7 |
72.5 |
90.9 |
105 |
123 |
167 |
200 |
250 |
|
SMP625 |
15.9 |
64.7 |
77.4 |
96.9 |
112 |
131 |
178 |
213 |
267 |
|
SMP656 |
16.7 |
78.5 |
93.5 |
117 |
136 |
159 |
216 |
258 |
324 |
|
SMP687 |
17.5 |
82.5 |
98.7 |
124 |
143 |
168 |
227 |
272 |
340 |
2寸 |
SMP750 |
19.1 |
100 |
120 |
150 |
174 |
204 |
276 |
330 |
414 |
|
SMP812 |
20.6 |
110 |
132 |
165 |
191 |
223 |
303 |
362 |
454 |
|
SMP875 |
22.2 |
136 |
162 |
203 |
236 |
276 |
374 |
448 |
560 |
|
SMP937 |
23.8 |
152 |
182 |
228 |
264 |
309 |
419 |
501 |
627 |
|
SMP1000 |
25.4 |
178 |
213 |
266 |
309 |
361 |
490 |
586 |
732 |
|
SMP1125 |
28.6 |
206 |
249 |
317 |
371 |
439 |
608 |
736 |
935 |
2-1/2 |
SMP1250 |
31.8 |
247 |
299 |
381 |
446 |
527 |
730 |
883 |
1120 |
|
SMP1375 |
34.9 |
297 |
359 |
456 |
535 |
632 |
875 |
1060 |
1350 |
|
SMP1500 |
38.1 |
363 |
440 |
559 |
655 |
774 |
1070 |
1230 |
1650 |
| 3寸 |
SMP1625 |
41.3 |
428 |
517 |
658 |
770 |
911 |
1260 |
1530 |
1940 |
|
SMP1750 |
445 |
488 |
591 |
751 |
880 |
1040 |
1440 |
1740 |
2220 |
4寸 |
SMP1825 |
47.6 |
550 |
660 |
845 |
990 |
1170 |
1620 |
1960 |
2490 |
|
SMP2000 |
50.8 |
643 |
778 |
989 |
1160 |
1370 |
1900 |
2300 |
2920 |
|
SMP2125 |
54.0 |
719 |
870 |
1100 |
1290 |
1530 |
2100 |
2550 |
3250 |
|
SMP2250 |
57.2 |
780 |
944 |
1200 |
1400 |
1660 |
2300 |
2780 |
3540 |
